When lightning strikes a structure, it can carry currents exceeding 200,000 amperes and temperatures reaching 30,000°C (five times hotter than the sun’s surface). BS EN IEC 62305-3 addresses this threat through systematic design of external lightning protection systems (LPS) that safely intercepts, conducts, and disperses lightning energy into the earth.
Part 3 of the BS EN IEC 62305 series addresses both physical damage to structures and life hazard. While Part 2 handles risk assessment and Part 4 covers electrical systems, Part 3 provides the engineering specifications for air termination networks, down conductor systems, and earth termination systems that form the structural backbone of lightning protection.
For facility managers, consulting engineers, and safety professionals, understanding BS EN IEC 62305-3 requirements ensures structures remain protected throughout their operational life, from initial design through decades of service.

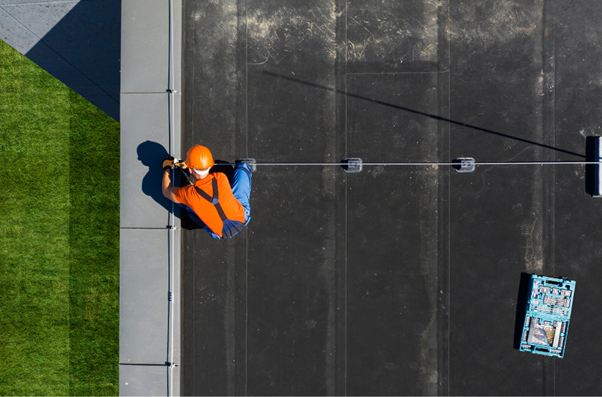

BS EN IEC 62305-3 Lightning Protection System Components
Air Termination Systems: Lightning Strike Interception
Air termination networks intercept lightning before it strikes vulnerable building components. BS EN IEC 62305-3 defines three accepted methods: air terminals (Franklin rods), meshed conductors, and catenary wires.
The rolling sphere method determines air terminal positioning. Imagine rolling a sphere of a specific radius (20m for LPS Class I, 30m for Class II, 45m for Class III, 60m for Class IV) over your structure. Any point the sphere touches requires protection—either the sphere contacts an air terminal, or that point needs additional coverage.
For flat roofs, mesh networks work effectively. The mesh size depends on protection level: 5m × 5m spacing for Class I protection, increasing to 20m × 20m for Class IV. On complex roofs with multiple levels, equipment protrusions, or architectural features, air terminals positioned according to rolling sphere calculations provide more practical coverage.
All protruding metalwork taller than 0.3m (ventilation stacks, satellite dishes, access hatches, maintenance platforms) requires bonding to the air termination network. Failure to bond these components creates side-flash hazards where lightning jumps between unbonded metal and the LPS conductors. Additional protection (or bonding) is required if the metalwork is higher than 0.3 m or if its total area is greater than 1.0 m or its length is greater than 2.0 m.
Down Conductor Systems: Lightning Current Path Design
Down conductors provide low-impedance paths from air terminals to earth termination systems. BS EN IEC 62305-3 specifies minimum conductor quantities based on structure perimeter and protection level.
For rectangular buildings, at least two down conductors are required, positioned at diagonally opposite corners. Larger structures need additional conductors spaced according to protection level requirements (10m spacing for Class I, increasing to 25m for Class IV). These spacings ensure even current distribution and minimize dangerous magnetic field effects during lightning discharge.
Down conductors should follow the most direct route to ground. Every bend increases impedance and generates magnetic fields that can induce voltages in nearby conductors. Where architectural constraints force deviations from straight vertical paths, maintain smooth transitions without sharp angles.
Natural components (structural steel columns, reinforced concrete with continuous vertical rebar) can serve as down conductors if they meet conductivity and continuity requirements. This integration approach, increasingly common in modern construction, reduces material costs while improving performance through better current distribution.
Earth Termination Systems: Grounding and Energy Dispersal
Earth termination systems disperse lightning current into the surrounding soil. BS EN IEC 62305-3 recognizes two fundamental approaches: Type A (vertical or horizontal electrodes) and Type B (ring earth electrodes).
Type B ring electrodes, installed in trenches at least 0.5m deep and approximately 1m from the structure foundation, provide the most reliable performance across varying soil conditions. The ring creates an equipotential plane around the structure base, reducing step and touch voltages that pose hazards to people near the building during strikes.
Type A arrangements use vertical rods and/or horizontal radial electrodes. Selection depends on soil characteristics, available space, and target earth resistance values. In high-resistivity soils (rocky terrain, sandy ground, frozen conditions), achieving low resistance requires extensive electrode systems or chemical treatment to improve soil conductivity.
The standard doesn’t mandate specific earth resistance values, contrary to common misconceptions. Instead, it requires earth resistance below 10Ω where practicable, while acknowledging that effective lightning protection can function at higher resistances if the earth termination system achieves adequate current dispersal.

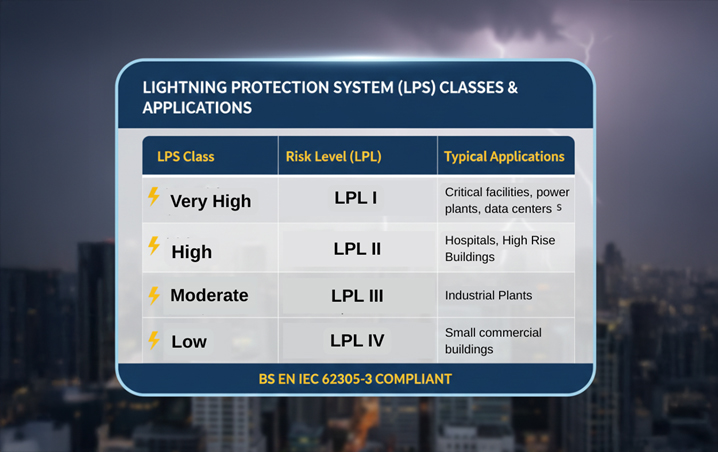

Lightning Protection Level Requirements: LPS Class I to IV Design
Lightning protection levels (LPS I through IV) scale system design parameters based on structure risk assessment results from Part 2.
LPS Class I provides the highest protection, appropriate for structures with high risk consequences (hospitals, schools, critical infrastructure). Design uses 20m rolling sphere radius, 5m mesh spacing, 10m down conductor spacing, and minimum 50mm2 cross-sectional area for solid copper conductors.
LPS Class II suits medium-high risk facilities (commercial buildings with significant occupancy). Specifications relax slightly: 30m rolling sphere, 10m mesh, 10m down conductor spacing, same conductor dimensions.
LPS Class III addresses typical commercial and industrial applications with moderate risk. Parameters increase to 45m rolling sphere, 15m mesh, 15m down conductor spacing.
LPS Class IV covers low-risk structures where lightning protection is warranted but consequences are limited. The standard permits 60m rolling sphere, 20m mesh, and 20m down conductor spacing.
Higher protection levels don’t simply add more components. They create denser capture networks that intercept lightning with higher probability and distribute current more evenly, reducing thermal and electromagnetic effects.
Lightning Protection System Inspection Requirements and Testing
BS EN IEC 62305-3 mandates regular inspections to verify ongoing system effectiveness. Inspection frequency depends on protection level, structure use, and environmental conditions.
Visual inspection intervals depend on the Protection Level: 1 year for Class I/II and 2 years for Class III/IV. Critical systems (e.g., munitions) may require 6-month intervals.
Inspectors examine air terminals for physical damage, corrosion, or displacement. Down conductors require checks for mechanical integrity, secure fixings, and absence of new metalwork that requires bonding. Earth termination connection points need inspection for corrosion and tight connections.
After structure modifications (roof work, building extensions, new mechanical equipment) inspections verify the LPS remains adequate for the changed configuration. Installing a new HVAC unit on a previously protected roof might require additional air terminals or bonding connections.
Electrical Testing measures earth resistance and continuity. Test earth resistance during dry conditions when soil resistivity peaks. This reveals system performance under worst-case conditions. Continuity testing between system components ensures no high-resistance joints have developed through corrosion or mechanical deterioration.
Documentation matters as much as physical inspection. Maintain records showing inspection dates, findings, test measurements, and corrective actions. These records demonstrate compliance for insurance purposes and provide historical data for analyzing system degradation patterns.
BS EN IEC 62305-3 Maintenance: Corrosion and System Integrity
Maintenance extends beyond inspection to active preservation of system condition.
Corrosion Management represents the primary maintenance concern. Galvanic corrosion occurs where dissimilar metals contact, such as copper conductors fixed with steel brackets, or aluminium conductors bonded to structural steel. BS EN IEC 62305-3 provides detailed material compatibility guidance, but existing systems may contain non-optimal combinations requiring monitoring or remediation.
Apply anti-corrosion treatments to vulnerable connections. Bimetallic joints need regular inspection and treatment with protective compounds. In coastal environments or industrial atmospheres with corrosive contaminants, increase inspection frequency and implement more aggressive corrosion prevention.
Mechanical Security prevents damage from wind loading, thermal expansion, and building movement. Check conductor fixings remain tight. Loose fixings allow conductors to vibrate, causing fatigue fractures over time. Expansion joints in long conductor runs accommodate thermal movement without generating mechanical stress.
Vegetation Management prevents plant growth from shorting mesh networks or interfering with down conductors. Tree branches growing near air terminals create preferential strike points outside the protection system. Maintain clearances between vegetation and LPS components.
After lightning strikes, conduct thorough inspections even if no obvious damage appears. Lightning current can cause hidden damage such as fractured conductor strands, weakened mechanical connections, or compromised earth electrodes. Measure earth resistance after strikes to verify ground system integrity.
Modern Building Integration: Solar Panels and Green Roofs
Contemporary structures present unique challenges for BS EN IEC 62305-3 compliance. Rooftop solar arrays require careful integration with lightning protection. Photovoltaic panels need bonding without compromising their electrical isolation. Green roofs with growing media affect earth potential distribution and require modified earthing approaches.
Building management systems, communications equipment, and distributed power systems all interact with lightning protection. While Part 4 addresses surge protection for these systems, Part 3 ensures the physical structure safely conducts lightning current without creating electromagnetic interference that damages sensitive electronics.
To address the challenge of Separation Distance for Rooftop PV, it is mandated that if the distance cannot be maintained, the PV frame must be bonded to the LPS, and Type 1 SPDs must be installed on the DC lines.
Metal cladding systems, structural glazing, and composite materials each present specific bonding and connectivity challenges. Modern architectural elements weren’t envisioned when lightning protection principles were established, requiring careful application of fundamental principles to novel situations.
Lightning Protection Installation: Materials and Best Practices
Material selection balances performance, durability, and cost. Copper provides excellent conductivity and reasonable corrosion resistance. Aluminum offers lighter weight at lower cost but requires more careful attention to joint design and dissimilar metal contact. Stainless steel suits aggressive environments despite higher material costs.
Standard specifications typically require 50mm² cross-sectional area for air termination and down conductors (e.g., 25mm x 2mm tape or 8mm solid round diameter). Vertical air terminals may require larger diameters (10-16mm) for mechanical stability. These dimensions ensure conductors survive lightning current’s thermal effects without damage.
Installation quality determines long-term system effectiveness. Even perfect designs fail if executed poorly. Welded or brazed connections provide superior reliability compared to mechanical fastenings. Where mechanical connections are necessary, use appropriate hardware and never improvise with general-purpose fasteners.
Testing upon installation verifies system performance before structural elements become inaccessible. Measure earth resistance, verify continuity between all components, and document the as-built configuration with photographs and drawings.
Ensuring Long-Term BS EN IEC 62305-3 Compliance
BS EN IEC 62305-3 provides comprehensive specifications for protecting structures from direct lightning strikes through properly designed, installed, and maintained external lightning protection systems. Success requires understanding not just the technical requirements but the underlying physics driving those requirements.
Lightning protection isn’t a fit-and-forget installation. Regular inspection and proactive maintenance ensure systems remain effective throughout structure lifespans that may span decades. Environmental conditions change, buildings evolve, and components degrade. Only systematic attention to ongoing performance maintains the protection level achieved at installation.
For organizations managing multiple facilities, establishing standardized inspection and maintenance protocols based on BS EN IEC 62305-3 creates consistency across the portfolio while ensuring each structure receives appropriate attention based on its specific risk profile and protection level requirements.
The standard provides the framework. Successful implementation requires combining technical knowledge with practical experience and commitment to ongoing stewardship of these critical safety systems.
