Electrical and electronic systems represent the highest-value assets in modern facilities, yet a single lightning-induced surge can destroy equipment worth millions in microseconds. BS EN IEC 62305-4 addresses this vulnerability through systematic surge protective device (SPD) coordination, transforming fragmented protection into integrated defense that maintains business continuity when lightning strikes.
While BS EN IEC 62305-3 protects structural integrity through external lightning protection systems, Part 4 safeguards the electrical infrastructure and sensitive electronics that keep operations running. For data centers, manufacturing facilities, and healthcare institutions where downtime costs thousands per minute, understanding coordinated SPD strategies is essential.
Understanding BS EN IEC 62305-4 Surge Protection Requirements
BS EN IEC 62305-4 defines a comprehensive framework for protecting electrical and electronic systems from lightning electromagnetic impulse (LEMP) effects. The standard recognizes that modern facilities face threats beyond direct strikes. Nearby lightning creates electromagnetic fields that induce voltages in cables, switching operations generate internal transients, and utility network disturbances propagate through power connections.
The standard introduces the lightning protection zone (LPZ) concept, dividing facilities into zones based on electromagnetic severity. LPZ 0 experiences the full electromagnetic environment of direct strikes. LPZ 1 protects against direct strikes but remains exposed to partial lightning currents and electromagnetic fields. LPZ 2 and higher zones achieve progressively better protection through additional shielding, SPD coordination, and equipotential bonding.
Transitioning between zones requires coordinated surge protection. Type 1 SPDs absorb high-energy surges at service entrance points, Type 2 SPDs handle remaining transients at distribution boards, and Type 3 SPDs provide final protection near sensitive equipment.

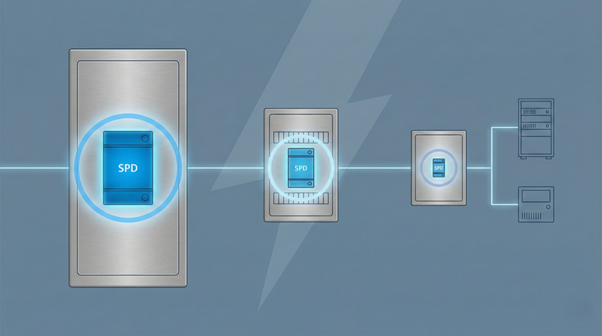

Surge Protective Device Types and Classification
Class I tested SPDs install at the structure entrance, protecting against external surges. These devices must withstand the 10/350 μs current waveform, characteristic of direct lightning strikes. Based on simplified current sharing rules for LPL I systems, the required lightning impulse current (Iimp) capacity for the N-PE path is typically 25 kA per line. Structures with external Lightning Protection Systems (LPS) require primary SPDs at the LPZ 0A/1 boundary.
Class II tested SPDs install on the load side of service equipment, protecting against residual lightning energy and internally generated surges. Characterized by the 8/20 μs nominal discharge current (In) waveform, these devices form the backbone of coordinated Surge Protection Measures (SPM).
Class III tested SPDs provide point-of-use protection for individual equipment. With lower discharge capacity, they must be installed as a coordinated SPD system to supplement upstream protection and effectively limit overvoltages to equipment rated impulse voltage (Uw).
Combination SPDs incorporate both voltage switching and voltage limiting components, meeting both high-energy discharge and secondary protection functions within a single enclosure.
SPD Coordination According to BS EN IEC 62305-4
Effective coordination ensures each SPD operates within its energy-handling capacity without interfering with upstream or downstream devices. Voltage protection level (Up) coordination creates the cascaded protection necessary for system reliability. The upstream SPD must have higher Up than downstream devices, with sufficient margin to account for cable impedance and let-through voltages.
The voltage protection level (Up) of the SPD must be coordinated with the equipment’s rated impulse voltage (Uw). For instance, equipment in Overvoltage Category II typically requires Uw = 2.5 kV. The SPD’s Up should ideally not exceed 80% of the equipment’s Uw to account for wiring effects.
While adequate distance (up to 10 m) traditionally relied on cable inductance for coordination, modern coordinated SPD systems often use manufacturer-specified coordination or devices such as two-port SPDs to achieve the required effective voltage protection level (Up,eff) when separation distance is less than 10 m.
Energy coordination matters equally. Class I tested SPDs must discharge bulk energy into the earthing system without overloading Class II devices. Calculation of energy splitting requires validating that each device operates within its capacity.
Coordination with Overcurrent Protective Devices (OCPDs) (circuit breakers and fuses) is necessary to prevent fire hazards, ensuring the SPD provides a controlled current path for lightning current even if the OCPD operates.

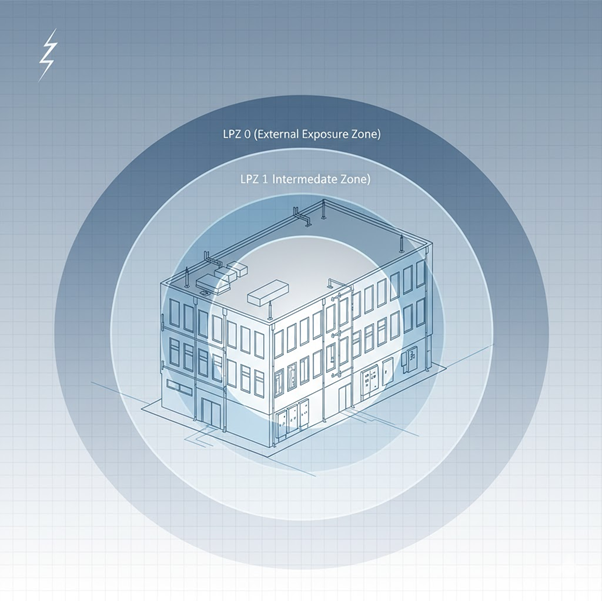

Lightning Protection Zones and System Design
Lightning Protection Zone (LPZ) design starts with a comprehensive risk assessment. Organizations conducting assessments under BS EN IEC 62305-2 can use risk assessment software to calculate facility-specific protection requirements. Skytree Scientific’s LRA Plus automates complex calculations by considering numerous factors such as structure geometry, local lightning ground strike-point density (NSG), equipment vulnerability, and the frequency of damage (F) due to failure of internal systems (L3).
LPZ boundaries typically align with structural elements. The transition from LPZ 0 (full LEMP threat) to LPZ 1 (limited surge current/attenuated magnetic field) requires Surge Protection Measures (SPM).
Equipotential Bonding (EB) is fundamental to minimizing potential differences. All conductive services entering an LPZ (power, communications, etc.) shall be bonded directly or via suitable SPDs at the boundary.

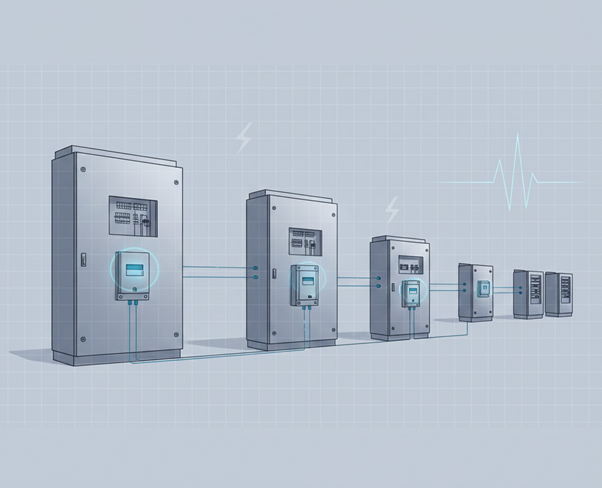

Implementing Coordinated SPD Systems for Maximum Uptime
Implementation begins at the service entrance. Install Class I tested SPDs (SPD1) at the LPZ 0/1 boundary. For three-phase systems, selection must consider the earthing arrangement (TN, TT, or IT), which dictates the appropriate SPD connection type (CT1 or CT2).
. Sub-distribution protection requires Class II tested SPDs (SPD2) at the LPZ 1/2 boundary or higher (e.g., secondary distribution boards or equipment terminals). In multi-story buildings, protection is essential for circuits serving sensitive systems.
Point-of-use protection supplements upstream devices for highly sensitive equipment. Equipment such as medical imaging systems, laboratory instrumentation, industrial control systems, and data center infrastructure often warrants dedicated Class III tested protection, ensuring the effective voltage protection level (Up,eff) remains below the equipment’s impulse withstand voltage (Uw).
Signal and data line protection should receive crucial attention, as these cables are major surge entry points. Communications cables and control circuits require SPDs selected and coordinated in compliance with IEC 61643-21 and IEC 61643-22 for telecommunication and signaling systems.

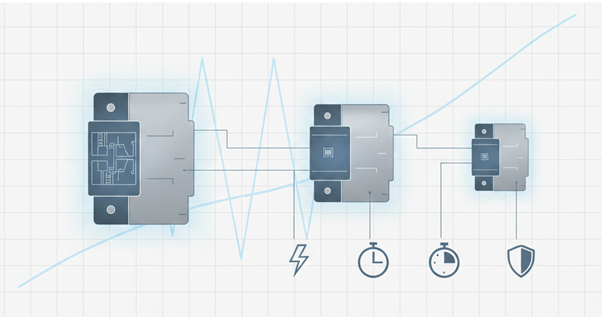

SPD Selection Criteria and Performance Specifications
Voltage Protection Level (Up) represents the maximum voltage at the SPD terminals during impulse stress. Up shall be below the equipment’s rated impulse voltage (Uw). Equipment in Overvoltage Category II has Uw of 2.5 kV. The SPD’s Up must not exceed this level, factoring in additional voltage drop (ΔU) along connecting leads.
Class I devices are characterized by the impulse discharge current (Iimp). The selection is based on calculated current sharing, which for LPL I systems typically dictates Iimp ≤25 kA for the N-PE path in a three-phase system.
Nominal Discharge Current (In) indicates repetitive surge capacity using the 8/20 μs wave. For Class II devices protecting LPL I structures, the In requirement is only 20 kA for the N-PE path (if present); requirements for L-N and L-PE paths are lower (e.g., 5 kA).
Maximum Continuous Operating Voltage (MCOV) must exceed the highest continuous voltage the SPD experiences. For 230V single-phase systems, MCOV should be at least 255V to accommodate normal voltage variations.
Response Time affects protection effectiveness for fast-rising surges. Metal oxide varistor (MOV)-based SPDs respond in nanoseconds, providing excellent performance for most applications. Gas discharge tube (GDT) devices offer higher energy capacity but slower response.
Status indication and remote monitoring capabilities improve maintenance efficiency, integrating with building management systems for proactive maintenance scheduling.

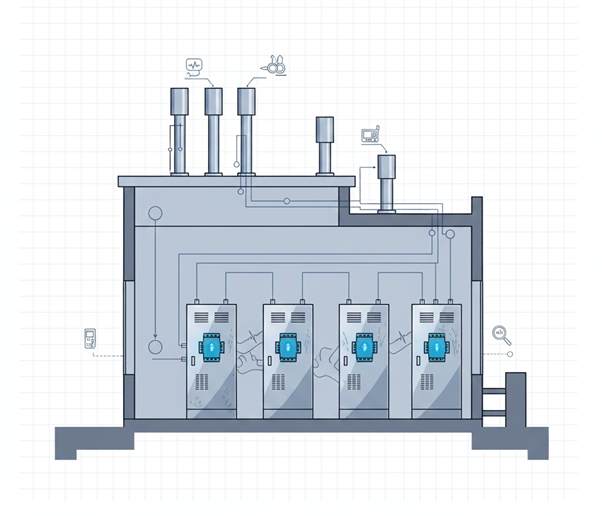

Maintenance and Testing for Long-Term Protection
Regular inspection verifies SPD operational status and identifies degradation before failure. Visual indicators provide first-line monitoring, showing whether protection remains active. Many modern SPDs include LED or mechanical indicators clearly visible without opening enclosures.
After lightning strikes affecting the facility, conduct a thorough SPD inspection even if status indicators show normal operation. Lightning current can damage internal components without immediate indication.
Replacement intervals depend on surge exposure, local lightning density, and manufacturer specifications. Facilities in high-lightning areas may require annual replacement of critical SPDs. Lower-exposure locations might achieve 3-5 year service life.
Documentation maintains protection system integrity over facility lifespans. Record SPD installations with location, type, specifications, and installation date. Track testing results, replacement history, and known surge events.
Business Continuity Through Coordinated Lightning Protection
BS EN IEC 62305-4 provides the technical framework for protecting electrical systems from lightning-induced surges. Calculate downtime costs, equipment replacement expenses, and data loss consequences to justify protection investment. Coordinated SPD systems typically cost 1-3% of the protected equipment value while preventing losses orders of magnitude larger.
Integration with broader facility systems maximizes protection benefits. Coordinate SPD strategy with uninterruptible power supply (UPS) systems, ensuring both protect against their respective threats. Include surge protection in backup generator installations, recognizing that switching transients during generator start-up creates internal surge threats.
The evolving electrical landscape demands proactive protection strategies. Solar installations, electric vehicle charging infrastructure, and distributed energy resources introduce new surge exposure points requiring coordinated protection.
Success requires understanding device characteristics, proper coordination, zone-based design, and ongoing maintenance. Organizations investing in systematic protection according to BS EN IEC 62305-4 minimize downtime, reduce equipment losses, and maintain operational reliability when lightning strikes. For facilities where continuous operation is essential, coordinated surge protection represents fundamental risk management, ensuring business continuity.
