Lightning strikes may seem like rare occurrences, but they pose significant risks to structures, systems, and human safety. Understanding and implementing proper lightning protection standards isn’t just about compliance—it’s about safeguarding lives, property, and business continuity. In this comprehensive guide, we’ll explore the key standards that govern lightning protection and how modern AI-guided tools are revolutionizing risk assessment processes.

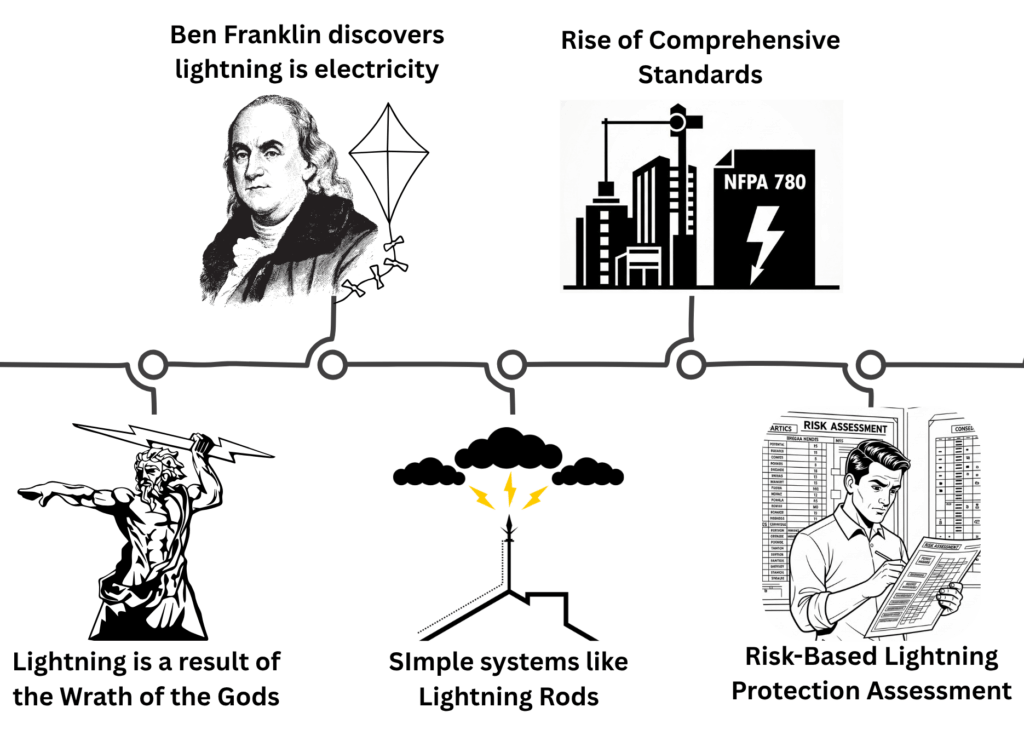

The Evolution of Lightning Protection Standards
The landscape of lightning protection has undergone significant changes in recent years, with updated standards reflecting our deeper understanding of lightning behavior and improved protection technologies. Three major standards currently shape the industry: IEC 62305 (both 2024 and 2010 editions) and NFPA 780-2023.
IEC 62305-2:2024: Risk Management Revolution
The latest edition of IEC 62305-2 represents a major leap forward in lightning risk assessment methodology. This standard focuses specifically on managing risks to structures from lightning flashes to earth, providing systematic procedures for evaluating threats and selecting appropriate protection measures.

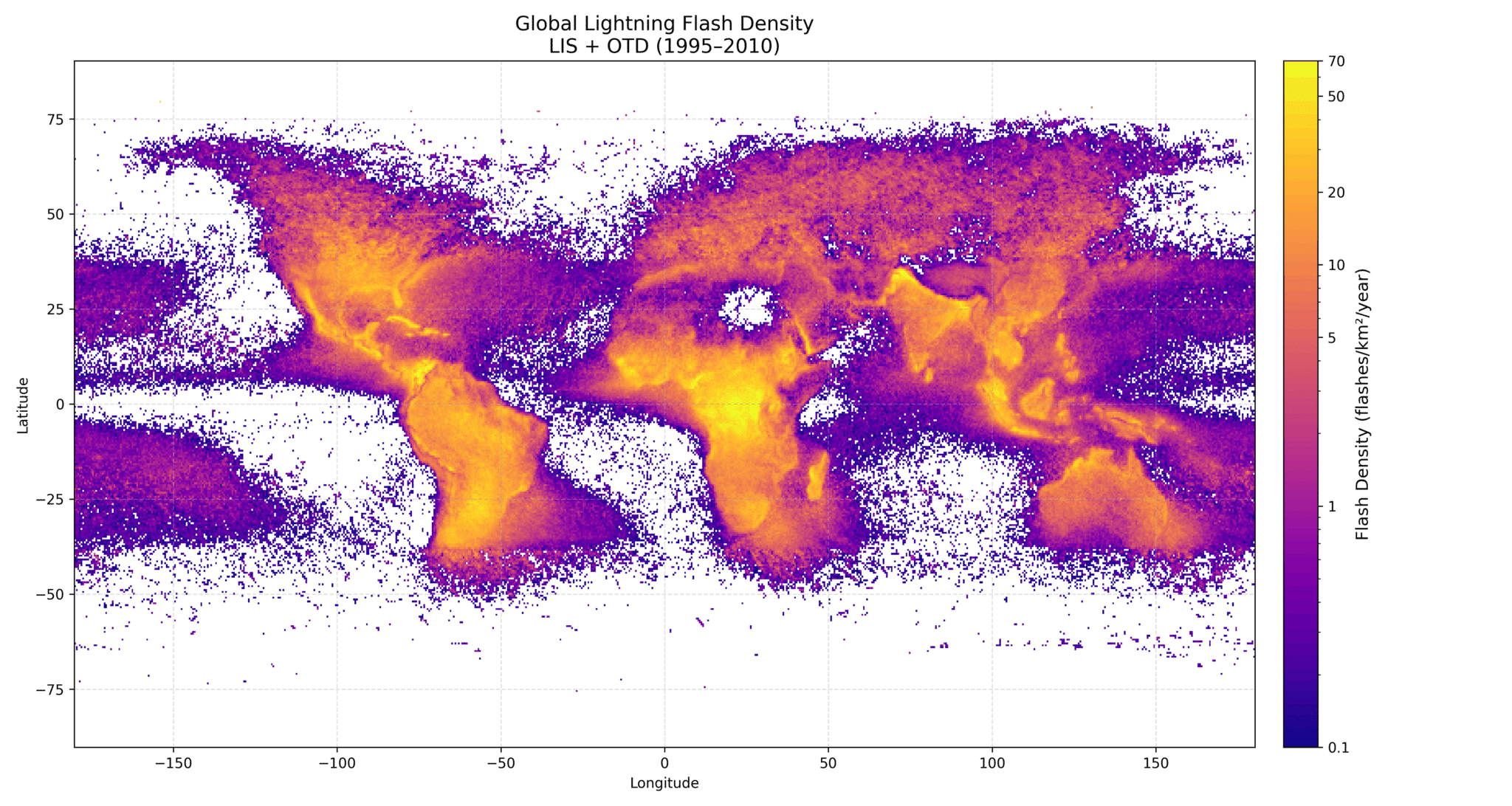

What sets the 2024 edition apart from its 2010 predecessor are several groundbreaking technical changes. The new standard introduces a unified risk concept that combines loss of human life with fire-related losses, offering a more holistic view of lightning dangers. Additionally, it incorporates the concept of damage frequency for internal systems and transitions from using flash density (NG) to lightning ground strike-point density (NSG) for more accurate lightning risk calculations of dangerous events.
Perhaps most notably, the updated standard acknowledges modern technological capabilities by incorporating preventive temporary measures activated through thunderstorm warning systems. It also addresses the often-overlooked risk of direct strikes to people in open areas, filling a critical gap in previous versions.
IEC 62305-3:2024: Physical Protection Excellence
While IEC 62305-2 focuses on risk assessment, IEC 62305-3:2024 tackles the practical implementation of lightning protection systems (LPS). This standard provides comprehensive requirements for protecting structures from physical damage while ensuring human safety from dangerous touch and step voltages.
The 2024 revision introduces several important technical improvements. These include specifications for minimum metal sheet thicknesses in air-termination systems to prevent dangerous hot-spot formation, enhanced cross-referencing with the IEC 62561 series for LPS components, and clarified methods for calculating separation distances. The standard also addresses modern architectural trends by including guidance for protecting green roofs and protruding facade elements, while introducing the concept of “electrically insulated LPS” for specialized applications.
NFPA 780-2023: American Installation Standards
The National Fire Protection Association’s NFPA 780 standard governs lightning protection system installation across various structure types in North America. The 2023 edition, which became effective in April 2022, maintains its practical focus on installation requirements while offering flexibility through its informative Annex L.
Unlike the mandatory risk assessment procedures in IEC standards, NFPA 780’s risk analysis component remains optional but valuable. Annex L provides both simplified and detailed methods for lightning risk assessment, allowing users to choose the approach that best fits their needs and expertise level.
Understanding Risk Categories and Economic Considerations

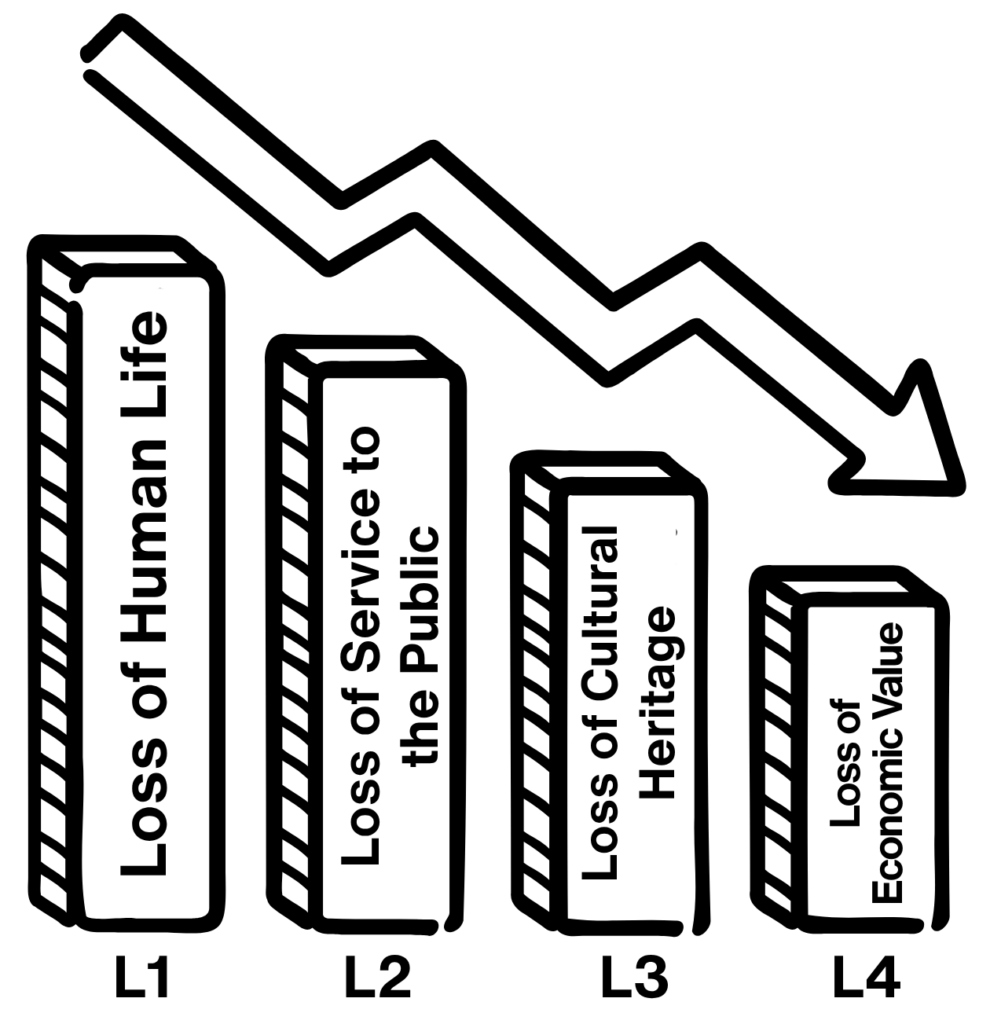

Effective lightning protection begins with understanding the types of losses that lightning can cause. Standards typically categorize potential losses into four main areas:
Loss of Human Life (L1) represents the most critical concern, encompassing direct injury from lightning strikes, secondary injuries from fires or explosions, and harm from system failures in critical facilities.
Loss of Service to the Public (L2) addresses broader societal impacts, including power outages, communication system failures, and disruptions to essential services that communities depend upon.
Loss of Cultural Heritage (L3) protects irreplaceable historical structures, artifacts, and culturally significant buildings that represent our shared heritage and cannot be replaced if damaged.
Loss of Economic Value (L4) encompasses direct property damage, business interruption costs, and the broader economic impacts of lightning-related incidents.
For many organizations, the economic analysis of protection measures proves particularly valuable. By Through comprehensive lightning risk evaluation and comparing different protection scenarios and their associated costs, facility managers can determine when lightning protection becomes not just a safety imperative but also a sound financial investment. Protection measures are considered economically sensible when the annual savings exceed the implementation and maintenance costs.
Special Considerations for High-Risk Environments

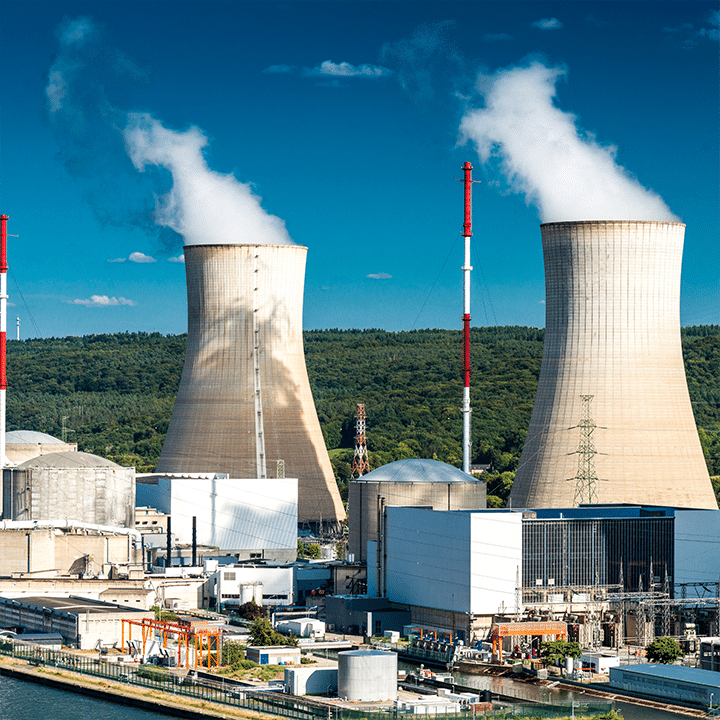

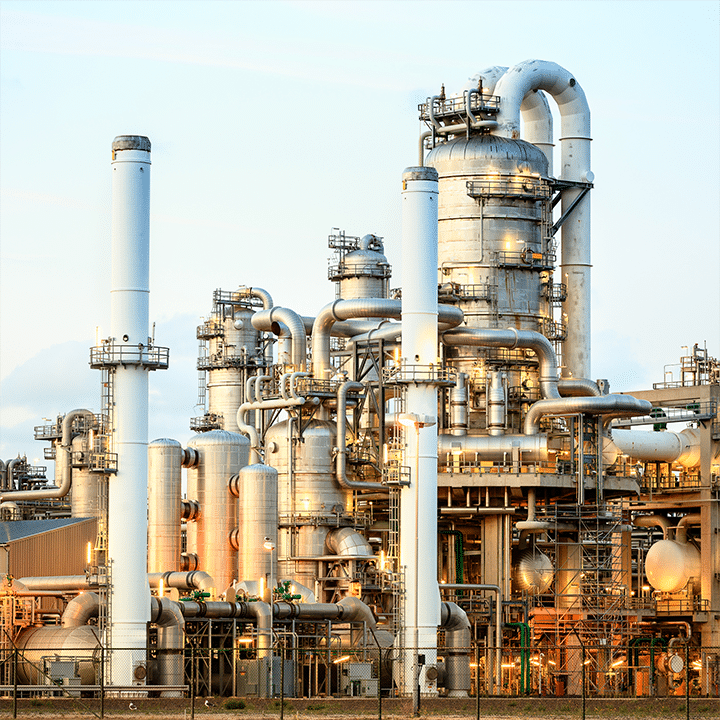

Certain structures require heightened attention due to their potential environmental impact. Chemical plants, nuclear facilities, and structures containing explosives fall into this category, where lightning-induced incidents could affect areas far beyond the immediate structure.
The evolution of IEC 62305-2 has recognized this reality by treating losses outside the structure independently from internal losses. This approach enables a more effective lightning risk mitigation nuanced risk assessment that better reflects the true scope of potential consequences. Ongoing proposals aim to further refine external loss factor calculations to provide more realistic risk assessments while avoiding overestimation of environmental risks.
The Critical Role of Inspections
No lightning protection system can maintain its effectiveness without proper inspection and maintenance. Comprehensive inspection programs should encompass multiple phases: design review, construction monitoring, acceptance testing, and ongoing maintenance inspections.
Effective inspection documentation should capture essential information about both the structure and its protection system, detail the inspection methodology and findings, record critical measurements such as earth resistance values, and include comprehensive information about the inspector’s qualifications and observations.
Modern approaches to reducing touch voltage risks include strategic use of insulating materials on down conductors and techniques to increase ground surface resistivity in areas where people might come into contact with the protection system.
Embracing AI-Powered Risk Assessment
The complexity of modern lightning protection standards can be overwhelming, but advanced AI-powered assistants are transforming how professionals approach risk assessment and compliance. These sophisticated tools provide instant guidance on standard requirements, support complex calculation explanations, and offer expert insights across multiple standards simultaneously.
By leveraging artificial intelligence, engineers and facility managers can navigate the intricacies of IEC 62305 and NFPA 780 more efficiently, ensuring comprehensive protection while maintaining cost-effectiveness. This technological advancement represents a significant step forward in making advanced lightning protection accessible to a broader range of professionals and organizations.
Looking Forward: The Future of Lightning Protection
As our understanding of lightning behavior continues to evolve and building technologies advance, lightning protection standards will undoubtedly continue to develop. The integration of smart warning systems, improved materials, and AI-assisted risk assessment tools points toward a future where lightning protection becomes more precise, cost-effective, and reliable.
The key to successful lightning protection lies not just in following standards, but in understanding their underlying principles and applying them thoughtfully to each unique situation. Whether you’re protecting a simple residential structure or a complex industrial facility, the combination of robust standards, proper implementation, and modern assessment tools provides the foundation for effective lightning risk management.
By staying current with evolving standards and embracing new technologies, professionals can ensure their lightning protection strategies remain effective, compliant, and economically sound. The investment in proper lightning protection pays dividends not only in reduced risk but also in peace of mind and long-term operational reliability.
